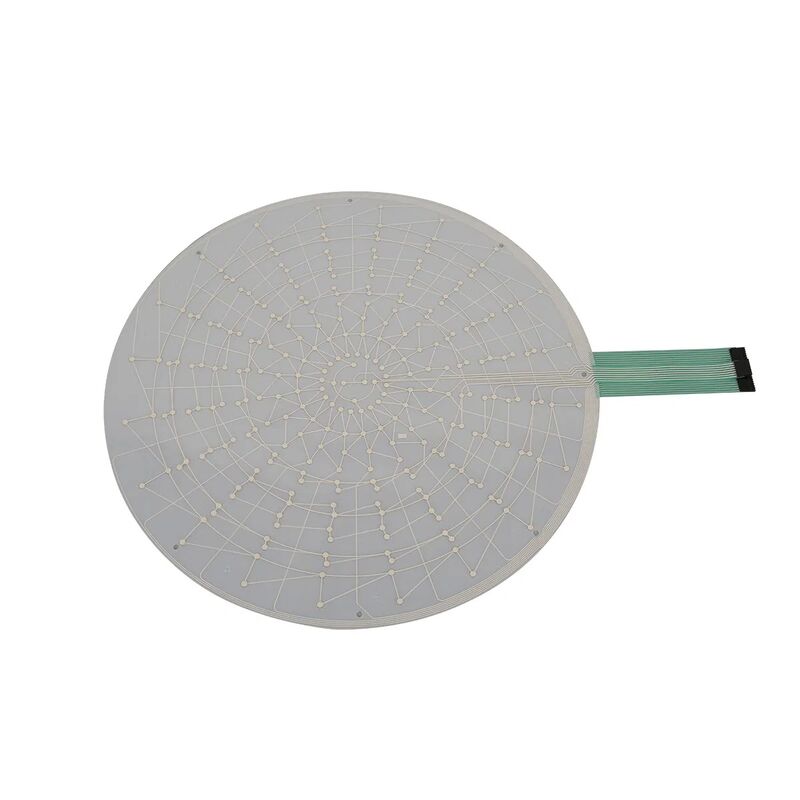

Big Size Multilayer Flexible Printed Circuit Magnetic Dart Boards

Name: Big Size Multilayer Flexible Printed Circuit Magnetic Dart Boards
Brand: TKM MEMBRANE TECHNOLOGY LTD.
Availability: InStock

Big size multilayer flexible printed circuit magnetic dart boards with moistureproof construction and high reliability electric PCB board.

Flexible Printed Circuit Construction

Layer Structure

Production Capacity

Screen Print Department

IR Tunnel

Thickness Tester

IR Oven

Laser Cutting Machine

Punching Department

Emboss Key Section

Assemble

Electric Testing

OQC Department

Virtual Aspect Testing

Punch Machine Department

PU Coating Section

Technical Specifications

Wire Resistance	≤ 1 Ohm/cm
Current Rating	25-100mA, 0-30V DC
Work Voltage	≤ 50V DC
Insulation Voltage	≤ 100M Ohm 250V DC
Working Life	≤ One Million Times
Work Temperature	-40°C to 70°C
Work Humidity	40°C ≤ 98%RH
Basic Material Pressurization	1500V DC

Why Choose Our Flexible Printed Circuits

High reliability in function with low cost
100% function test before shipment with RoHS compliance
Three factories to support mass production
Professional staff and administrative level expertise
Expert sales team for customer service support
Metal dome or silicone keypad options available
Waterproof seal & design reaching IP65 standard
17 years of experience working with famous brands including SANYO, Philips, Siemens, Mattel

Detailed Technical Parameters

Parameter	Specification
Insulation Resistance	<100MΩ, 250V DC
Contact Resistance	<1Ω/cm
Operating Voltage	≤ 50V DC
Working Current	25-100mA, 0-30V DC
Reliability/Service Life	>1 million times/Withstand millions of cycles
Operating Humidity	When 40°C, <98%RH
Spring Time	≤ 5ms
Substrate Voltage	2000V DC
Tail Flexibility	Any angle within 180 degrees
Switch Travel	Flat Type: 0.05-0.3mm, Tactile Type: 0.3-1.5mm
